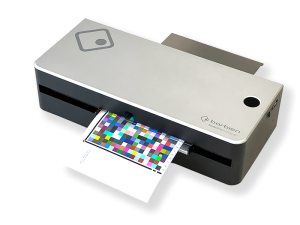

Spectro Swing qb 2 mm

Compact automated spectrophotometer with a 2 mm measurement aperture for profiling and color quality control on flexible and sheet based digital printing materials. Supports automated reflection and transmission measurement.
  • 2 mm aperture for small measurement patches and uniform surfaces
  • Reflection and transmission measurement
  • Automated chart measurement with software controlled operation
Request a Quote
Talk to an Expert

Key Capabilities of the Spectro Swing qb 2 mm

Buttonless Operation

Software controlled chart measurement with minimal operator interaction.

2 mm Precision

The 2 mm aperture supports small measurement patches and compact chart layouts on smooth and visually uniform materials.

Reflection and Transmission

Automated reflection measurement on printed materials and transmission measurement on suitable transparent or translucent samples.

Compact Footprint

Designed for production environments where space is limited.

Color Management

Automated measurement of profiling charts for ICC profile creation in compatible RIP and Color Management software.

Print Standardization

Measurement of linearization, printer calibration, and process control targets on compatible printing materials.

Quality Control

Measurement of control charts and production samples for comparison with reference data and defined color tolerances.

Typical Materials

Coated and uncoated paper, photographic paper, labels, self adhesive media, smooth films, thin board, and other visually uniform materials up to 1.2 mm thickness.

Applications

The Spectro Swing qb 2 mm is a compact automated spectrophotometer for profiling and color quality control on smooth and visually uniform digital printing materials. Its 2 mm measurement aperture supports small patches and compact chart layouts, making it suitable for paper, photographic media, labels, films, and other compatible materials.

The instrument performs automated reflection and transmission measurements on suitable samples up to 1.2 mm thickness and integrates with compatible RIP, profiling, and Color Management software.

Typical applications:

  • Automated measurement of ICC profiling charts
  • Measurement of linearization and printer calibration targets
  • Measurement of control charts and production samples on paper based and flexible materials
  • Color quality control across production runs on compatible flexible and thin rigid samples

Typical Printing Applications:

  • High speed digital inkjet printing

  • Roll to roll printing on smooth flexible media

  • Digital label printing

  • Digital photo and fine art printing

  • Decorative paper and wallpaper printing

  • Selected flexible packaging applications

Spectro Swing qb 2 mm Key Specifications

  • Automated reflection and transmission measurement
  • 2 mm measurement aperture for small patches and compact chart layouts
  • Supports M0, M1, and M2 measurement conditions according to ISO 13655. Available in reflection and transmission
  • Supports media up to 1.2 mm thick
  • Measurement geometry: 45°:0° reflection and d:0° transmission
List of supported software applications

Technical Documentation

Spectro Swing qb Product Flyer
PDF (792 KB)
Spectro Swing qb Data Sheet
PDF (1.0 MB)
Spectro Swing qb Operating Manual
PDF (587 KB)
Barbieri Gateway Operating Manual
PDF (668 KB)

Add Accessories to Your Quote

Enhance your measurement setup with compatible accessories and extensions.

C041H51 Reflection Sample Holder Spectro Swing

C041H51 Reflection Sample Holder Spectro Swing

i

Dedicated reflection sample holder for the Spectro Swing qb. Eases the handling of thin, lightweight or curling reflective substrates such as photo paper, labels and films, ensuring flat presentation for accurate spectral measurement. White backing according to ISO 13655

Stabilizes reflective substrates for repeatable measurement on the Spectro Swing qb.

C041H50 Transmission Sample Holder Spectro Swing

C041H50 Transmission Sample Holder Spectro Swing

i

Sample holder for the Spectro Swing qb, enabling consistent positioning of films, transparencies and backlit materials during transmission measurement.

Sample holder for transmission measurement on the Spectro Swing qb.

Digital Output Control (DOC)

Digital Output Control (DOC)

i

Digital Output Control (DOC) is Barbieri’s color verification and certification software for digital printing. It compares measured output against industry color standards (ISO, Fogra, G7), generates compliance reports and supports automated quality control across digital print production runs. Compatible with all Barbieri spectrophotometers. Activated within BARBIERI Gateway

Color verification and certification software for digital print production.

Barbieri Gateway software

Barbieri Gateway software

i

Barbieri Gateway is the free measurement software bundled with every Barbieri spectrophotometer. It drives the device, manages chart layouts, handles measurement conditions and exports data in formats compatible with all major RIP and color management software. Available for Windows and macOS.

Measurement software for Windows and macOS, included with every BARBIERI spectrophotometer.
